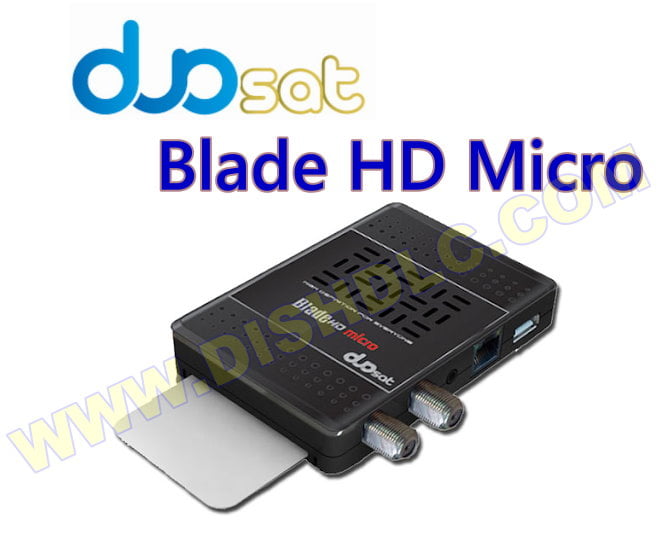

DUOSAT BLADE HD MICRO SATELLITE RECEIVER LATEST SOFTWARE UPDATE (Atualização)
DUOSAT BLADE HD MICRO satellite receiver software, activator (antigo), encoded (codificado) and loader Latest update (Atualização). This website (dishdl) provide all duosat series model receiver new software and all duosat receiver tools download for free and fast. For more information comments on page like our Facebook Page or follow us on Twitter.
Specifications:
Processor: Risc M3606 396MHz
Flash Memory: 8MB
DDR2 SDRAM: 256MB
Power Supply
Type: External Adaptor
Power Consumption: DC 12V, 2A, 50/60Hz
Protection: Separate Internal Fuse
The input should be protected against lighting
Main Features:
Tuner
1- Number of tuners: 2
2- Input/Output Connector: F-Type, IEC 169-24, Female
3- Input Frequency Rate: 950MHz ~ 2150MHz
4- Input Signal Level -65dBm ∼ -25dBm
5- Connectors: 75Ω unbalanced
6- Input Impedance: Vertical: +13.5V (+14.5V at high Voltage)
7- Horizontal: +18V (+18.5V at high Voltage)
8- Current: Max. 500mA (Short Circuit Protection)
9- 22KHz Tone: Frequency 22KHz±4KHZ
10- Amplitude 0.6±0.2Vpp
11- DiSEqC Control: 1.0 & 1.1 Compliant Version
12- Channel Selection: PLL Frequency Synthesizer
Demodulator
Type: DVB-S, DVB-S2
Demodulation: QPSK, 8PSK
Input Symbol Rate: 1~45MS/s, SCPC and MCPC capable
FEC Mode: DVB-S: Auto, 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2:
– QPSK: Auto, 1/2, 3/5, 2/3, 4/5, 5/6, 8/9, 9/10
– 8PSK: Auto, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Video
Transport Stream: MPEG-2 ISO/IEC 13818-2 MPEG-4 Part 2
Profile Level: MPEG-2 MP@ML, MPEG-2 MP@HL MPEG-4 AVC/H.264 [email protected]
Input Rate: 15Mbit/s Max
Video Format: 4:3, 16:9, Letter Box
Video Resolution: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Audio
1- Audio Decoding: MPEG/MusiCam Layer I & II, AC3 Down Mix
2- Audio Mode: Mono / Dual / Joint Stereo / Stereo
3- Audio Bit Rate: 32Kbits/s – 384Kbits/s
4- Sampling Frequency: 32, 44.1, 48KHz
Input/Output AV data
External IR: 1 x Input
Audio/Video (CVBS, AUDIO L/R) 1 x Input
EXT. Connects to the LED/IR display extension cable
RS-232C: 1 x Input
HDMI: Digital Audio and Video Output
USB: 2 x (USB 2.0 Host)
Ethernet: (LAN) 1 x RJ45
File Name
New! Duosat Blade HD Micro_ V532 11062021.rar
1- Duosat Blade HD Micro_ V531 20042021.rar
Update DUOSAT BLADE HD MICRO_ Receiver Software 11/06/2021
Download DUOSAT BLADE HD MICRO_ Receiver Firmware New Update
