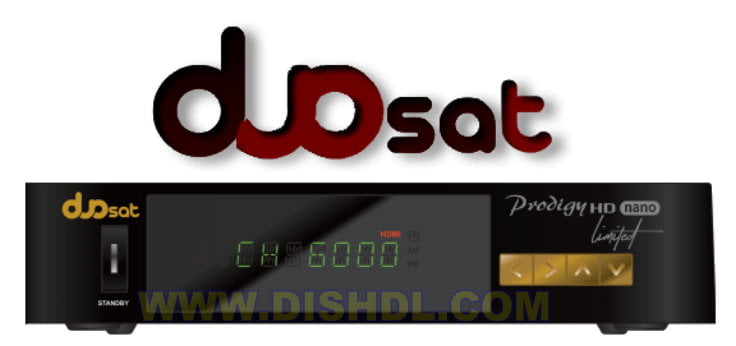

DUOSAT PRODIGY HD NANO LIMITED DIGITAL SATELLITE RECEIVER SOFTWARE UPDATE (Atualização)
Download Duosat Prodigy HD Nano Limited Sat Receiver Latest update (Atualização). This website (dishdl) provide all duosat series model sat receiver new software and all duosat receiver tools download for free and fast. For more information comments on page like our Facebook Page or follow us on Twitter.
Sky (in SKS too)
Oi TV
Claro TV
200 channels
32 in HD (except on Sky)
Premier, Adults, PPV, Series, Children, BBB, etc…
Protocol: IKS / SKS / CS / Ondemand
Specifications:
Brand: Duosat
Model: Prodigy HD Nano Limited
Color: Black with Gold details
Tunners
Number of Tuners: 2
Input/Output Connector: F-type, IEC 169-24, female
Input Frequency Rate: 950MHz ~ 2150MHz
Signal Level Input: -65dBm ~ -25dBm
Connector: 75Ω Unbalanced
Input Impedance: Vertical: +13.5V (+14.5V for high voltage)
Horizontal: +18V (+18.5V for high voltage)
Current: Max. 500mA (Short Circuit Protection ) )
Tone 22KHz Frequency: 22KHz ± 4KHz
Amplitude: 0.6 ± 0.2Vpp
DiSEqC Control Compatible Version 1.0 & 1.2
Channel Selection PLL Frequency Synthesizer
Demodulator
Type: DVB-S, DVB-S2
Demodulation: QPSK, 8PSK
Input Symbol Rate: 1~45MS/s, SCPC and MCPC Capability
FEC Mode: DVB-S: Auto, 1/2, 2/3, 3/ 4, 5/6, 7/8
DVB-S2
QPSK: Auto, 1/2, 3/5, 2/3, 4/5, 5/6, 8/9, 9/10
8PSK: Auto, 3/5 , 2/3, 3/4, 5/6, 8/9, 9/10 Streaming
Video Decoding
: MPEG-2 ISO/IEC 13818-2
MPEG-4 Part 2
Profile Level: MPEG-2 MP@ML, MPEG-2 MP@HL
MPEG-4 AVC/H.264 [email protected]
Input Rate: 15Mbit/s Max
Video Format: 4:3, 16:9, Letter Box
Video Resolution: 1080p, 1080i, 720p , 576p, 576i, 480p, 480i
Audio Decoding: MPEG/MusiCam Layer I & II, AC3 Down Mix
Mono / Dual / Joint Stereo / Stereo
Audio Bit Rate: 32Kbits/s – 384Kbits/s
Sampling Frequency: 32, 44.1, 48KHz Internet
Interface
1 RJ45 Port
HDMI Digital Audio and Video Out
Audio Out 2 x RCA Cinch (L/R)
Video Output 1 x RCA Cinch
SPDIF 1 x Optical / USB Audio Digital Output
2 x (USB 2.0 Host), Front & Rear
WIFI Internal Wi-Fi Module
RS-232C 9 Pin D- Sub Socket Type (Max. 115200bps)
Power Supply
Input Voltage AC 90-250V, 50/60Hz
Bivolt 110/220V
SMPS Type (Transition Mode Power Supply)
Protection Separate Internal Fuse
Input must be protected from light
File Download
New! Duosat Prodigy HD Nano Limited_V3.8 29012024.rar
3- Duosat Prodigy HD Nano Limited_V3.7 22012024.rar
2- Duosat Prodigy HD Nano Limited_V3.6 18012024.rar
1- Duosat Prodigy HD Nano Limited_V3.5 25082023.rar
Update DuosDuosat Prodigy HD Nano Limited_Receiver Software 29/01/2024
Download Duosat Prodigy HD Nano Limited_Receiver Firmware New Update
